Telco Technologies, Inc. (In-Door Enclosures)

INDOOR ENCLOSURES

Telco Technologies has flexible indoor equipment protection solutions designed from the ground up for ease of installation and space saving. The “i Series" enclosures are modular and can be shipped disassembled for assembly on site. Both the “i Series" and “PR Series" can be mated with other enclosures for a complete multiple rack indoor enclosure solution. Our indoor enclosures can be configured to meet NEMA Type 1, Type 2 or Type 12 ratings in an aesthetically pleasing and simple package.

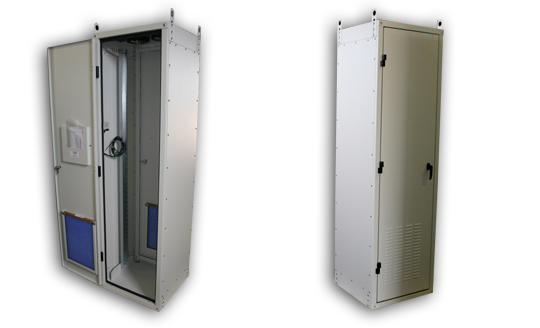

i SERIES

ENCLOSURE DIMENSIONS:
9030I - 90.00”H X 30.50”W X 30.50”D I.D. (48 RACK UNITS)
7230I - 72.00”H X 30.50”W X 30.50”D I.D. (38 RACK UNITS)
8424I - 84.00”H X 24.00”W X 24.00”D I.D. (44 RACK UNITS)
842416I - 84.00”H X 24.00”W X 16.00”D I.D. (44 RACK UNITS)
OTHER CUSTOM SIZE CONFIGURATIONS AVAILABLE
MATERIAL: 12GA. STEEL ASTM A1008 (STANDARD)
WEIGHT: 400 LBS. APPROXIMATELY (VARIES TO ENCLOSURE SIZE AND OPTION SPECS)
FINISH: POWDER COAT WHITE STANDARD (ADDITIONAL COLORS AVAILABLE)
COOLING: TOP MOUNT EXHAUST FANS (FRONT MOUNT OPTIONAL) THERMOSTAT CONTROLLED
ALARMS: INTRUSION, HIGH TEMP, HYDROGEN, SMOKE
RACKS: 19.00 OR 23.00 E.I.A. STANDARD, FRONT OR MID MOUNT EQUIPMENT
DOORS: FRONT AND REAR REMOVABLE DOORS WITH THREE POINT LOCK SYSTEM ADDITIONAL DEAD BOLD LOCKING (OPTIONAL)

PR SERIES

ENCLOSURE DIMENSIONS: 81.00”H X 25.50”W X 35”D OTHER CUSTOM SIZE CONFIGURATIONS AVAILABLE
MATERIAL: 18 GA. STEEL ASTM A1008 (STANDARD)
FINISH: POWDER COAT BLACK (ADDITIONAL COLORS AVAILABLE)
COOLING: CONVECTION OR FAN/FILTER THERMOSTAT CONTROLLED
ALARMS: INTRUSION
EQUIPMENT RACK: CONFIGURED FOR 19.00” OR BATTERY TRAYS
DOORS: FRONT AND REAR REMOVABLE AND REVERSIBLE DOORS WITH SCREEN MESH OR LOUVERS
